Rhino 7: Visualize distance, tangency or curvature with EdgeContinuity
December 07, 20221 min read

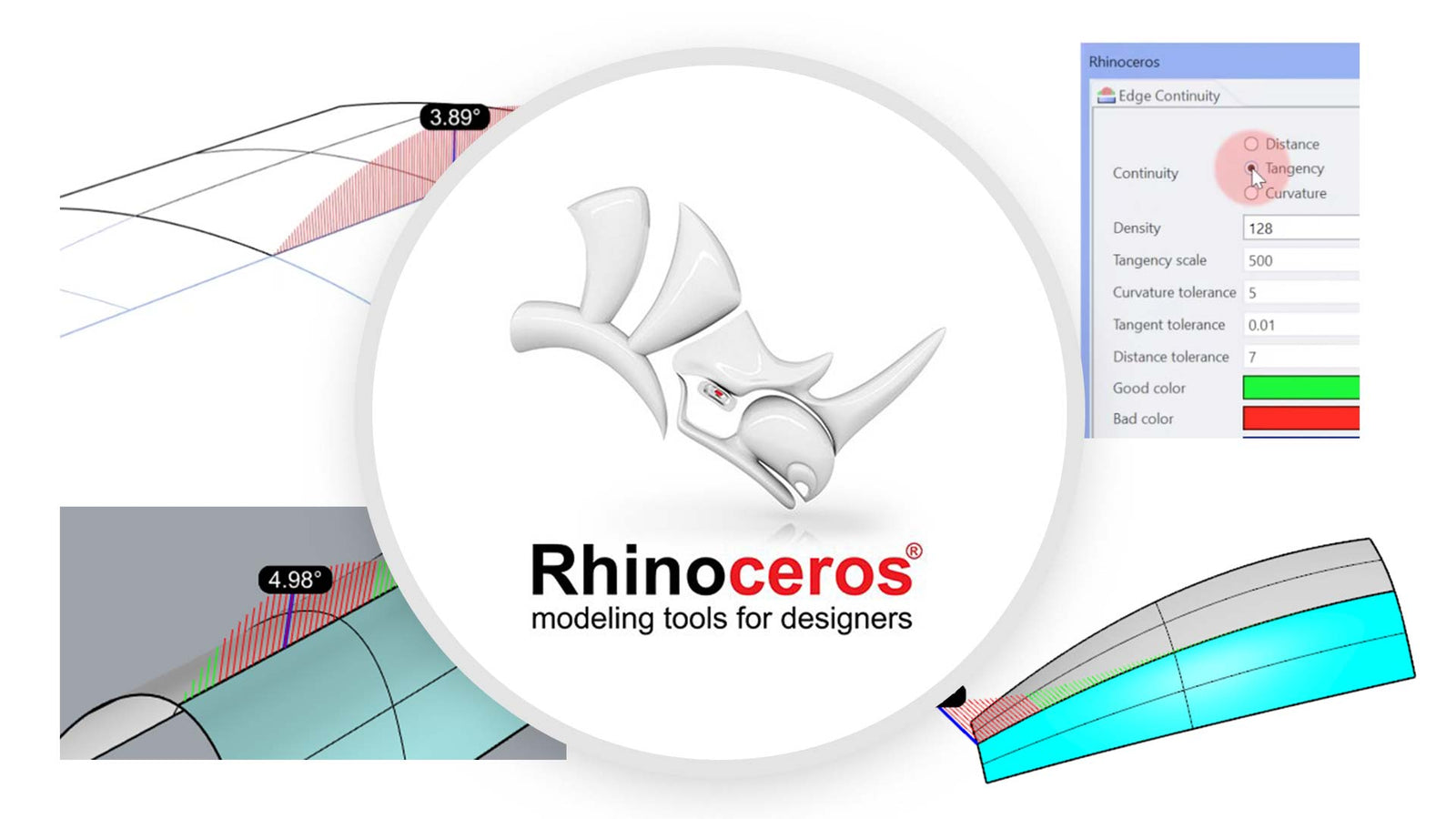

A powerful new feature in Rhino 7, the EdgeContinuity command uses hair lines to visualize distance, tangency or curvature deviation between an edge pair. In other words, EdgeContinuity displays a graphic (quills) and numeric indication of the difference in position, tangency, or curvature continuity across pairs of surface edges.
Just select two edges to evaluate and set options in the Edge Continuity panel (distance, tangency, or curvature).
Learn more about this great new feature of Rhino 7!
