Template to define arm base shape | Shapr3D Design for Manufacturing

April 09, 2024 1 min read

Template to define arm base shape | Shapr3D Design for Manufacturing

Video From YouTube: Shapr3D

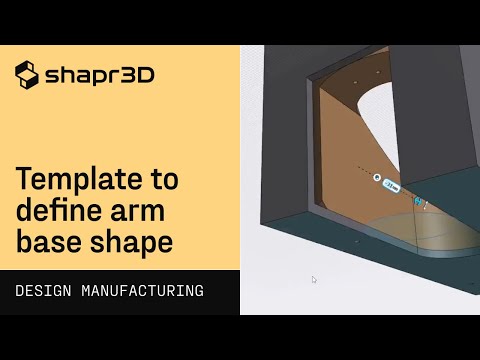

Discover how to create precise arm base shapes with Shapr3D's innovative CAD software, tailored for efficient design for manufacturing processes. This instructional video demonstrates the use of a constructed box template to accurately determine the contours, slopes, and necessary cutouts on an arm base. Viewers will learn techniques for projecting linework onto various sketch planes to achieve the desired curvature and for extruding cavities, ensuring the component is ready for router production. Ideal for designers and manufacturing professionals, this tutorial provides an insightful look into streamlining product development.
