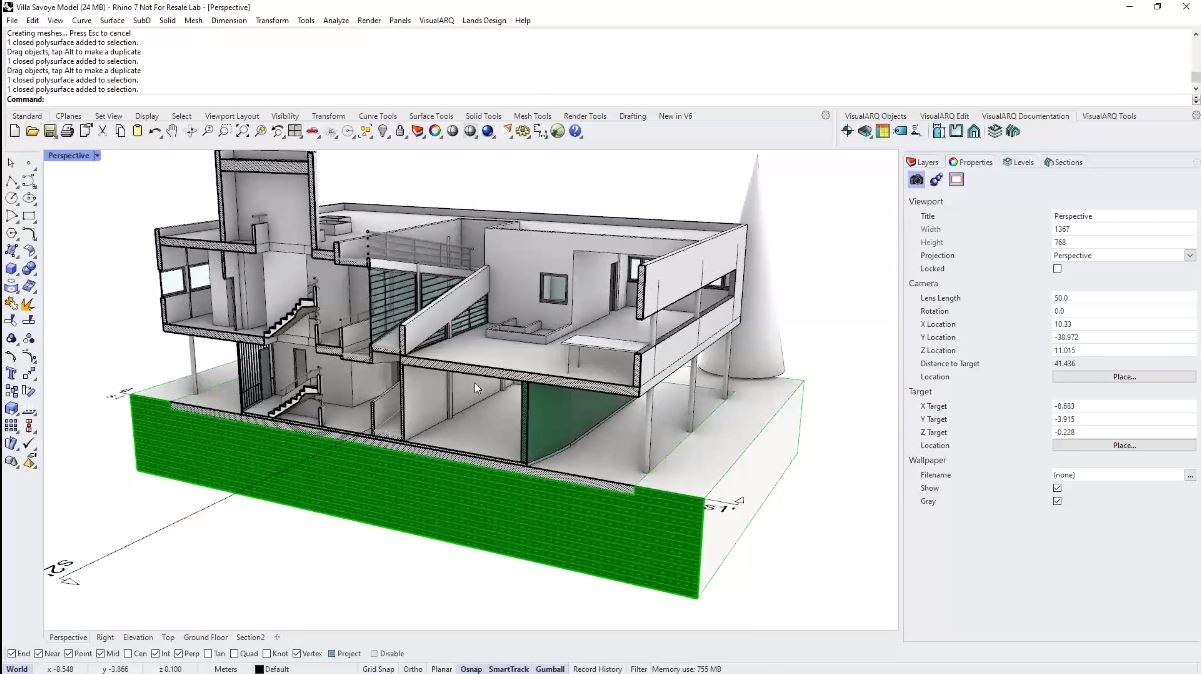

Travel Back and Forth From Rhino to Revit With VisualARQ

VisualARQ is an Architectural Design Software that adds flexible BIM features to Rhino.
Thanks to VisualARQ,  it is now possible to transfer any Rhino and VisualARQ model back and forth to Revit with just a click.
Taking advantage of the interoperability between Rhino and Revit with the Rhino.Inside.Revit technology, VisualARQ offers a simple way to make this conversion. Especially if you are not familiar with Grasshopper but still need to  transfer Rhino models to Revit. You'll be able to work with VisualARQ objects and Rhino geometry tagged with ifcTypes, and all geometry and data will transfer to Revit with the corresponding object types and parameters.

With this workflow you will be able to:

  • Transfer all the VisualARQ objects.
  • Transfer Rhino geometry.
  • Use the IFC VisualARQ features to tag Rhino geometry with an IFC type so that it will be transferred to Revit as if you had exported to IFC.
  • For some kind of objects (walls, slabs, doors and windows), their styles will be automatically transferred as Revit types, so that they will be Revit native objects.
  • Transfer all the VisualARQ parameters associated to objects with their values.

You can easily travel back to VisualARQ and import Revit types as VisualARQ styles with Rhino.Inside. Check it out!
