#Reverse Engineering a Truck Wheel Cap from 3D Scan #quicksurface #scantocad #automobile

September 04, 2026 1 min read

Autodesk Fusion 360

Video From YouTube: QUICKSURFACE

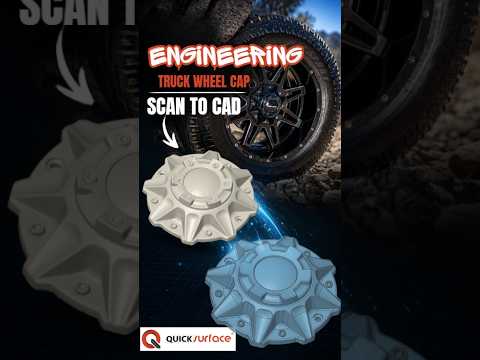

This demonstration by QuickSurface shows a replacement truck wheel cap rebuilt from a 3D scan into clean, corrected CAD ready for manufacturing. Warped scan geometry is corrected and reconstructed into a single, watertight model suitable for dimensionally accurate inspection and 3D printing. The workflow highlights scan cleanup, surface fitting, feature reconstruction, and export to fabrication, illustrating practical Scan-to-CAD reverse-engineering techniques for automotive components. Viewers gain a clear, application-focused tutorial on restoring damaged or distorted scanned parts into production-ready CAD. Ideal for engineers, reverse engineers, and additive manufacturing practitioners seeking efficient practical methods. Complete workflow examples and downloadable project files included.

If you like this content please subscribe to the QuickSurface YouTube Channel
