Pipe Curve, Sweep tools, and Revolve

June 10, 2024 1 min read

Autodesk Fusion 360

Video From YouTube: formz3D

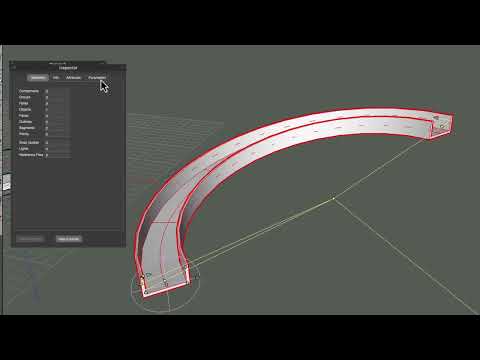

Explore the capabilities of FormZ's robust modeling tools in this informative video. Discover the Pipe Curve tool, ideal for creating tubular structures along a predefined path. Delve into the Axial Sweep tool, which revolutionizes the way closed shapes are swept along open paths, offering a plethora of parameters and options to customize your design. Learn how to align multiple shapes with precision using the 'Centroid' option and navigate the complexities of sweeping along closed paths and 3D splines. Witness a practical application of these tools, such as constructing a pedestrian ramp with an arc, and understand how to adjust parameters post-operation through the Inspector.

If you like this content please subscribe to the form-Z YouTube Channel
