Lampshade outer tool main body | Shapr3D Design for Manufacturing

April 10, 2024 1 min read

Lampshade outer tool main body | Shapr3D Design for Manufacturing

Video From YouTube: Shapr3D

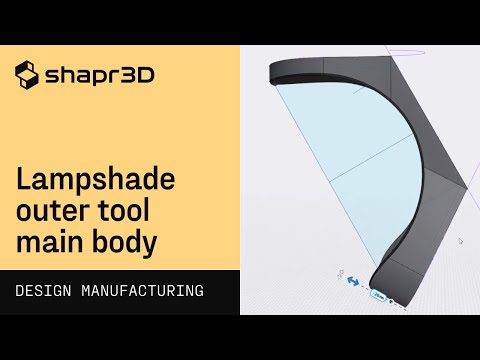

Explore the intricate process of designing a manufacturing tool with precision using Shapr3D. Witness the creation of a solid model that assists in guiding a router around a lampshade component. The tutorial demonstrates the technique of splitting the model for symmetry and provides step-by-step guidance on sketching, projecting entities, and using extrusion and subtraction methods to refine the design. The video is a valuable resource for understanding how to eliminate unnecessary material and establish a path for tool travel, enhancing efficiency in the manufacturing process. Viewers are invited to access the model for a hands-on experience with advanced design techniques.

If you like this content please subscribe to the Shapr3D YouTube Channel
