Switch Between Spline Creation Methods (Fit Points ⇋ Control Vertices) from Properties Palette

June 26, 2025 1 min read

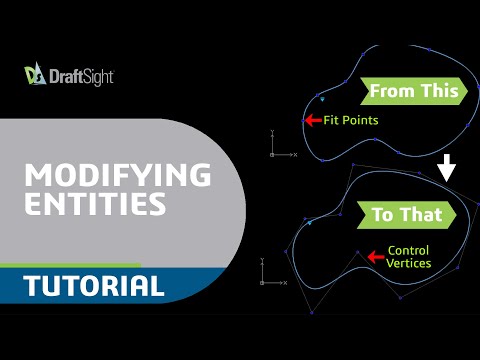

Switch Between Spline Creation Methods (Fit Points ⇋ Control Vertices) from Properties Palette

Video From YouTube: DraftSight




In this informative tutorial by Dassault Systemes, viewers will explore the straightforward techniques for transitioning between spline creation methods in DraftSight. The video focuses on the effective use of the Properties Palette to switch seamlessly between "Fit Points" and "Control Vertices." By following the step-by-step guide, users can enhance their design capabilities, achieving accurate curves and shapes with ease. Ideal for both beginners and experienced CAD users, this resource showcases how to edit and create splines, streamlining the design process. Join the community of CAD enthusiasts and unlock new possibilities in 2D design.

If you like this content please subscribe to the DraftSight YouTube Channel
