Line Editing

June 03, 2024 1 min read

Autodesk Fusion 360

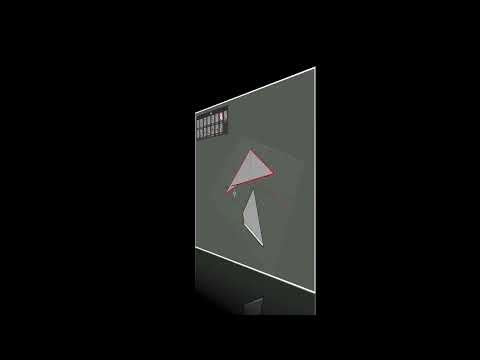

Video From YouTube: formz3D




Discover the intricate process of refining design work with FormZ's comprehensive tutorial on advanced line editing techniques. Learn to master a range of tools including the 'Trim line,' 'Trim and Join,' and 'Fillet' functionalities for precise modifications. The guide covers the 'Break line tool' and 'Extend Segment To' features, shedding light on their applications. Delve into the nuances of the 'Break With' and 'C-Split' functions, and explore the 'Join' and 'Fillet' tools for seamless line integration. The tutorial further explains how to use the 'Close Line' and 'Connect End' tools effectively, along with the 'Connect Lines/Wires' feature. Enhance your visualization with interactive display options like 'Show Direction,' and finesse your lines with the 'Reverse,' 'Insert Point,' and 'Insert Segment' tools, including tips on point removal for optimized line structures.

If you like this content please subscribe to the form-Z YouTube Channel
